2004 Progress Report: Solubilization of Particulate-Bound Ni(II) and Zn(II)
EPA Grant Number: R828771C012Subproject: this is subproject number 012 , established and managed by the Center Director under grant R828771
(EPA does not fund or establish subprojects; EPA awards and manages the overall grant for this center).
Center: Center for the Study of Childhood Asthma in the Urban Environment
Center Director: Hansel, Nadia
Title: Solubilization of Particulate-Bound Ni(II) and Zn(II)
Investigators: Stone, Alan T.
Institution: The Johns Hopkins University
EPA Project Officer: Aja, Hayley
Project Period: October 1, 2001 through September 30, 2007
Project Period Covered by this Report: October 1, 2003 through September 30, 2004
RFA: Hazardous Substance Research Centers - HSRC (2001) Recipients Lists
Research Category: Hazardous Waste/Remediation , Land and Waste Management
Objective:
Models currently used to manage metal-contaminated sites currently have three principal shortcomings: (1) toxic metal speciation in many instances is under kinetic control rather than thermodynamic control; (2) host solids are often reworked by precipitation/dissolution reactions such that toxic metal ions are “buried” and hence physically inaccessible; and (3) soil organic constituents are difficult to characterize and hence difficult to account for. The objective of this research project is to perform carefully designed laboratory experiments to gain specific, quantitative information about these three phenomena. Our work will focus on the dissolution of NiO(s) and the desorption of Ni(II) and Zn(II) from FeOOH (goethite) and Fe(OH)3 (amorphous) surfaces. We are aided in this research by capillary electrophoresis (CE), which allows us to monitor processes taking place in aqueous solutions, and by high resolution transmission electron microscopy (HRTEM), which allows us to see surface structural changes.
Progress Summary:
Orthophosphate, which we have previously employed as the electrolyte buffer for the CE analysis of Ni(II) and Fe(III), is a moderate complexant and has the potential of altering speciation while electromigration is taking place. To get the best possible speciation information from our experiments, we have investigated using MOPS as the CE buffer. In an electropherogram obtained using an equilibrated solution of the aminocarboxylate chelating agent HEDTA (N-(2-hydroxyethyl)ethylenediamine-triacetic acid), Ni(II), and Fe(III), peaks corresponding to free HEDTA, Fe(III)-HEDTA, and Ni(II)-HEDTA are readily distinguished. The change in peak area when the detection wavelength is shifted from 214 nm to 244 nm allows the three peaks to be identified. Absorbance by free chelating agent is limited to very low wavelengths; absorbance by Fe(III) complexes exhibits the widest range of wavelengths.
We have conducted kinetic experiments by allowing Ni(II) 24 hours of contact with FeOOH (goethite), and then adding a chelating agent which solubilizes Ni(II) via ligand-assisted desorption and Fe(III) via ligand-assisted dissolution.

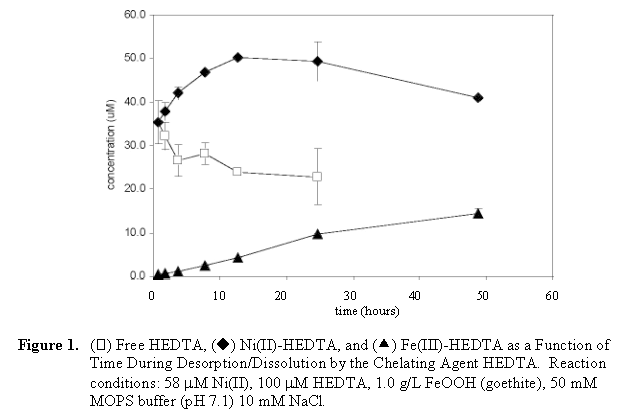

Figure 1 shows loss of free HEDTA, production of Ni(II)-HEDTA, and production of Fe(III)-HEDTA as a function of time. It is interesting to note that Ni(II)-HEDTA concentration reaches a maximum, then decreases. The source term, as mentioned, is ligand-assisted desorption. The sink term is interesting. Clearly, “metal ion exchange” is taking place; Fe(III) is displacing Ni(II) within the HEDTA complex. Owing to the low solubility of unchelated Fe(III) species, this displacement reaction likely takes place at the FeOOH (goethite)-water interface.

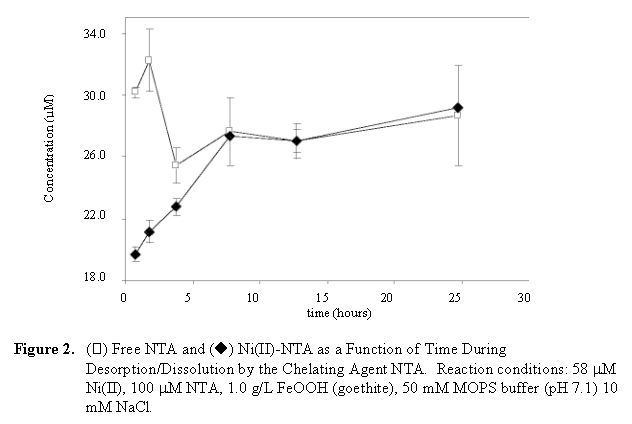

Results from a preliminary experiment with nitrilotriacetic acid (NTA) are shown in Figure 2. The 1:1 Fe(III)-NTA complex is electrically neutral and, therefore, not readily quantified using our existing CE technique. (We will have to develop an alternative technique for monitoring this complex.) The fact that NTA solubilizes Ni(II) more slowly than HEDTA is reasonable, given the fact that the two ligands adsorb to FeOOH(goethite) to about the same extent, but the equilibrium constants (K values) for Ni(II)-NTA complexes are lower than for Ni(II)-HEDTA complexes.
Future Activities:
The experiments we have performed so far are illustrative of “contaminant mixture” scenarios that will occur at some contaminated sites. It also is important to include chelating agents that occur naturally. We would like to do experiments with deoxymugineic acid, a siderophore released by the growing roots of some grass species. Although deoxymugineic acid possesses the same Lewis Base functional groups as HEDTA, they are arranged within the molecular structure quite differently. Indeed, inclusion of a half-dozen or more chelating agents with the same Lewis Base functional groups yet different molecular structure will be needed to systematically compare factors controlling Ni(II) desorption and those controlling Fe(III) dissolution.
Metal-mobilizing redox processes also are important. After the Ni(II) plus FeOOH(goethite) contact period, we could spike suspensions with Fe(II). Some Ni(II) desorption is expected arising from competitive adsorption with Fe(II) for available surface sites. Any Fe(III)-Fe(II) electron transfer could alter this, however, by burying the reduced iron within particle interiors, or by creating mixed Fe(III)/Fe(II) or “magnetite-like” surface layers. An additional perspective could be gained by adding an organic reductant in the place of Fe(II). By choosing the concentration carefully, an experiment could be performed with the amount of reductant capacity in the organic reductant addition experiment equal to the reductant capacity in the Fe(II) addition experiment. The nature and extent of surface alteration caused by Fe(II) addition and by organic reductant addition, however, could be different.
