Grantee Research Project Results
2005 Progress Report: Remote Sensing of Water Quality
EPA Grant Number: R829458C001Subproject: this is subproject number 001 , established and managed by the Center Director under grant R829458
(EPA does not fund or establish subprojects; EPA awards and manages the overall grant for this center).
Center: EAGLES - Consortium for Estuarine Ecoindicator Research for the Gulf of Mexico
Center Director: Brouwer, Marius
Title: Remote Sensing of Water Quality
Investigators: Han, Luoheng
Institution: The University of Alabama , University of Southern Mississippi
EPA Project Officer: Packard, Benjamin H
Project Period: December 1, 2001 through November 30, 2005 (Extended to May 20, 2007)
Project Period Covered by this Report: December 1, 2004 through November 30, 2005
RFA: Environmental Indicators in the Estuarine Environment Research Program (2000) RFA Text | Recipients Lists
Research Category: Aquatic Ecosystems , Ecological Indicators/Assessment/Restoration , Water
Objective:
Hyperspectral sensing of chlorophyll α(chlorophyll α) in Pensacola Bay continued in the fourth year of the “Remote Sensing of Water Quality” project. In addition, hyperspectral sensing of biofilms was conducted. This is part of a collaborative effort between the University of Alabama (UA) and the University of West Florida (UWF) to explore the applications of remote sensing to other components of the Consortium for Estuarine Ecoindicator Research for the Gulf of Mexico (CEER-GOM). The main goal of this joint endeavor was to develop a practical tool for estimating chlorophyll concentration of biofilms using spectral reflectance. Findings from the study include the utility of the first derivative spectra and the best wavelengths for determining chlorophyll content of biofilms. Two articles were published in the International Journal of Remote Sensing during the period of this report.
The objectives are to: (1) continue hyperspectral sensing of chlorophyll α in Pensacola Bay; and (2) estimate chlorophyll α of biofilms using hyperspectral sensing technique.
Progress Summary:
Hyperspectral Sensing of Chlorophyll α
Close-range hyperspectral sensing was conducted, in collaboration with Dick Snyder’s crew from UWF, in August 26, 2006, over Pensacola Bay. Surface spectral reflectance data were collected over 14 of 16 of the Gulf Ecology Division’s monthly sampling locations. Water sampling data were simultaneously collected and tested in the laboratory for chlorophyll αand other water quality parameters. The chlorophyll αconcentrations ranged from 0.85 at P1 to 11.45 μg L-1 at P4. Figure 1 shows the surface re flectance curves.
Figure 1
Derivative analysis was performed of the surface reflectance spectra. Figure 2 shows the correlation between first derivative and chlorophyll α concentration.
Figure 2

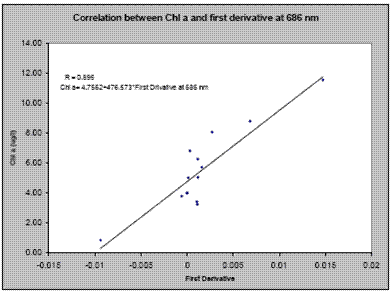

The best spectral band for estimating chlorophyll αwas found at 686 nm (Figure 3), which is consistent with the results from 2002 and 2003.
Figure 3
Hyperspectral Sensing of Biofilms
The hyperspectral sensing of biofilms was a collaborative effort between Luoheng Han of UA and Richard Snyder of UWF. The purpose was to develop a practical tool to characterize the biofilms using measured chlorophyll concentrations and spectral reflectance. The experiments were conducted in the laboratory of UWF (Photos 1 and 2).
Figures 4, 5, and 6 show the spectral reflectance between 400 and 900 nm for 20 bottom and 34 surface biofilms deployed in different locations (open bay and marsh creeks), in Pensacola Bay. These biofilms were placed, maintained, and collected by UWF as a part of the biofilm component of CEER-GOM. Although the reflectance values seem to be weakly associated with the chlorophyll αconcentrations of the biofilms, the shapes/slopes of the reflectance curves do contain the chlorophyll αinformation.
Figure 4
Figure 5
Figure 6

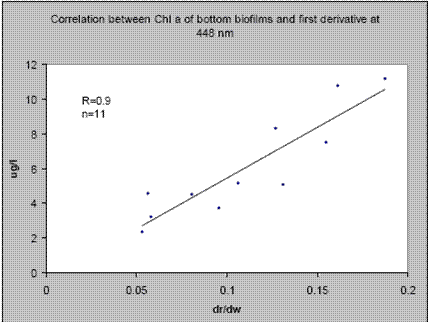

Derivative spectra and correlation analysis were performed between the first derivative and chlorophyll αof biofilms. Figure 7 highlights the result for both surface and bottom biofilms. The highest R (0.9) was found at 448 nm for the bottom biofilms, while -0.8 (R) was found at 748 nm for the surface biofilms. When the two datasets were combined, the wavelength of 655 nm appeared to offer the best correlation (R = -0.69). Figures 8 and 9 indicate that the first derivative spectra show promise for estimating chlorophyll αcontent of the biofilms.
Figure 7
Figure 8
Figure 9
Journal Articles on this Report : 2 Displayed | Download in RIS Format
| Other subproject views: | All 8 publications | 2 publications in selected types | All 2 journal articles |
|---|---|---|---|
| Other center views: | All 175 publications | 58 publications in selected types | All 52 journal articles |
| Type | Citation | ||
|---|---|---|---|
|
|
Han LH, Jordan KJ. Estimating and mapping chlorophyll-a concentration in Pensacola Bay, Florida using Landsat ETM+ data. International Journal of Remote Sensing 2005;26(23):5245-5254. |
R829458C001 (2004) R829458C001 (2005) |
not available |
|
|
Han LH. Estimating chlorophyll-a concentration using first-derivative spectra in coastal water. International Journal of Remote Sensing 2005;26(23):5235-5244 |
R829458C001 (2004) R829458C001 (2005) |
not available |
