Grantee Research Project Results
2001 Progress Report: Development of Relevant Ecological Screening Criteria (RESC) for Petroleum Hydrocarbon-Contaminated Exploration and Production Sites
EPA Grant Number: R827015C011Subproject: this is subproject number 011 , established and managed by the Center Director under grant R827015
(EPA does not fund or establish subprojects; EPA awards and manages the overall grant for this center).
Center: Center for the Study of Metals in the Environment
Center Director: Allen, Herbert E.
Title: Development of Relevant Ecological Screening Criteria (RESC) for Petroleum Hydrocarbon-Contaminated Exploration and Production Sites
Investigators: Lanno, Roman , Cross, Anne , Focht, Will
Institution: Oklahoma State University
EPA Project Officer: Aja, Hayley
Project Period: July 1, 2000 through June 30, 2001 (Extended to December 31, 2001)
Project Period Covered by this Report: July 1, 2000 through June 30, 2001
RFA: Integrated Petroleum Environmental Consortium (IPEC) (1999) RFA Text | Recipients Lists
Research Category: Hazardous Waste/Remediation , Targeted Research
Objective:
Faced with the task of assessing cleanup options based on ecological risk-based on ecological risk-based criteria at thousands of small upstream sites, oil and gas producers are in need of a streamlined rationale for assessing ecotoxicological risk at these sites. The development of a risk based corrective action (RBCA) approach for the protection of ecological resources provides a mechanism for site-specific ecological risk assessment (ASTM 1999). However, a lack of toxicity data for soil organisms and relevant ecological screening criteria (RESC) for conducting ecological risk assessments may result in the use of default parameters and the derivation of overly conservative protection limits, resulting in unnecessary cleanup expense. The proposed research will use crude oil-contaminated soil from the Tall Grass Prairie Preserve, Pawhuska, OK, that vary in hydrocarbon content to conduct laboratory-based toxicity tests with microbes, soil invertebrates, and plants. Toxicity tests will be conducted with standard soil test invertebrates (earthworm Eisenia fetida), non-standard soil test invertebrates (e.g., enchytraeids, collembola, isopods), native prairie plant species, and soil microbial assessments consisting of examining community structure and N-mineralization. This will result in an expanded database from which RESC can be derived. Exposure assessment will consist of determining total petroleum hydrocarbons (TPH) by standard techniques (IR and GC/MS) and by estimating bioavailable petroleum hydrocarbons (BPH) using solid-phase microextraction (SPME) fibers. Results of the laboratory bioassays will be used to generate RESC for plants, soil invertebrates, and microbes exposed to hydrocarbons in prairie grassland soils. Development of dose-response relationships using bioavailable petroleum hydrocarbons and organism responses would allow the applicability of the results of this study to a broader range of contaminated sites, not just prairie habitats.
Progress Summary:
The major accomplishments of this quarter were:
- a. Completion of plant toxicity tests with hydrocarbon-contaminated site soils
b. Completion of solid-phase microextraction analysis of hydrocarbon-contaminated soils

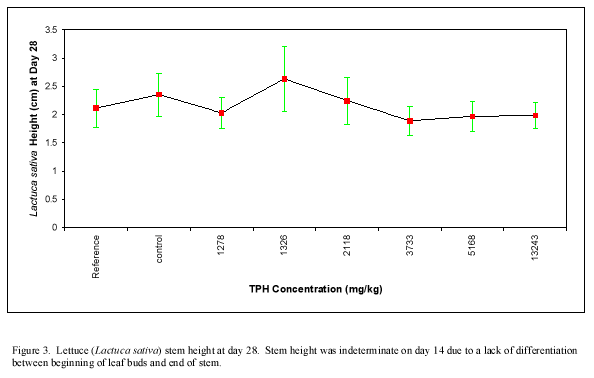

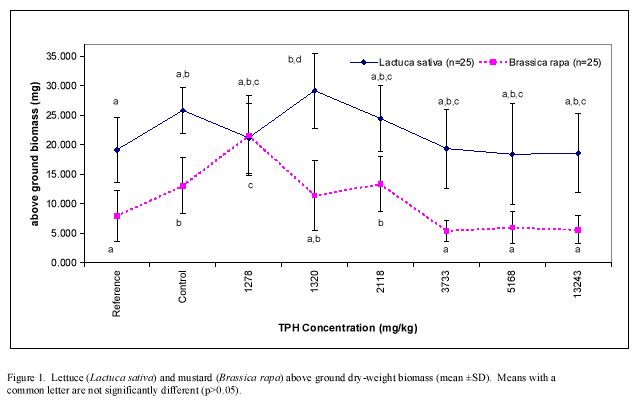

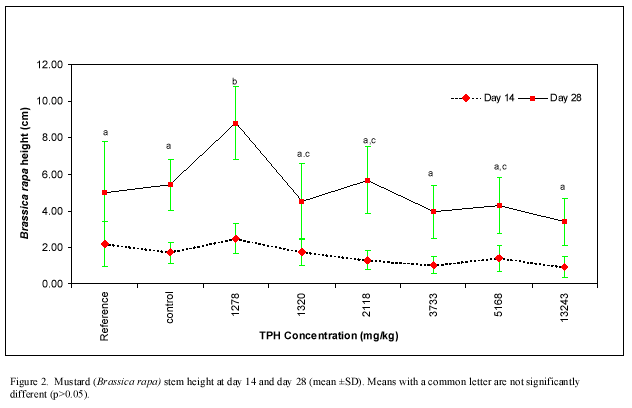

The bioassays with Schizachyrium scoparium (Little Bluestem), Andropogon gerardii (Big Bluestem), Lactuca sativa and Brassica rapa have been completed. A significant treatment effect (p < 0.001) on Brassica rapa above ground biomass and stem height (at day 14) were observed (Figure 1,2). Rather than a toxic effect, there was an increase in above ground biomass and stem height (at day 14), suggestive of hormesis. No other significant effects of soil type were observed on lettuce biomass or plant height (Figures 1, 3). Insufficient germination of Big Bluestem or Little Bluestem biomass precluded the use of these species in assessment of the soils.
Solid-phase microextraction (SPME) analysis of the bioavailable petroleum hydrocarbon in the soils has been conducted and data is currently being analyzed. Nitrification assays of the soils are also being completed.
Plans for the current quarter include the development and application of the derivation process for Relevant Ecological Screening Criteria to the available data to derive a RESC for hydrocarbons in prairie soil.
Journal Articles:
No journal articles submitted with this report: View all 5 publications for this subprojectSupplemental Keywords:
hydrocarbon, soil, soil invertebrates, plants, soil screening levels, bioavailability, exposure assessment, toxicity tests., RFA, Scientific Discipline, Geographic Area, Waste, Water, Ecosystem Protection/Environmental Exposure & Risk, RESEARCH, Bioavailability, Midwest, Contaminated Sediments, Remediation, Chemistry, State, Monitoring/Modeling, Analytical Chemistry, Monitoring, Bioremediation, Biology, Engineering, Environmental Engineering, petroleum, degradation, risk assessment, ecological screening, oil biodegradation, contaminated sediment, dose response, Tallgrass Prairie Perserve, Pawhuska, OK, microbes, chemical contaminants, soils, oil spills, toxicity, bioremediation of soils, soil, hydrocarbons, oil removal, environmental stressors, environmental toxicant, measurement, microorganism, sampling, refinery sites, Oklahoma (OK), toxicsProgress and Final Reports:
Original AbstractMain Center Abstract and Reports:
